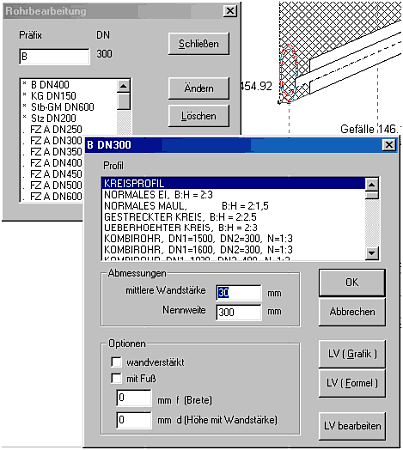

- Installation of pipes
At Menu in Einbau =>
Rohre
Here new pipes can be seized and/or existing pipes be changed.
Dimension, material, wall thickness and cross section are freely selecting and
changeable. Each pipe can be linked with any number of LV positions. The
defined pipes can stored (-> * ror) and also again read in (<- * ror)
become. They are available thereby in later projects.
The attitude to be
assigned the pipes prepared here when working on the sample attitude under
attitude to change = pipe.

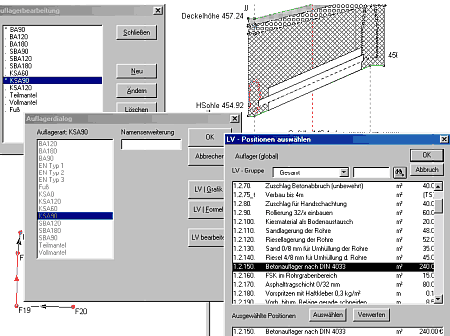

- Installation support
At Menu in Einbau =>
Auflager
Kanabis offers under this menu option prefabricated all
usual support types after DIN/EN 1610 and the old, in the meantime to
invalid however DIN 4033 still often which can be found . They can be
connected similarly to the pipes by LV(Grafik)/LV(Formel) with LV
positions.
The attitude to be assigned the supports best when working
on, prepared here, sucked. Sample attitude under attitude change =>
supports. Here in the concrete attitude with a concrete pipe the standard sizes
support width and height under the pipe can be changed and be transferred by
copying process to other attitudes also with the DIN
4033-Bearinigs.

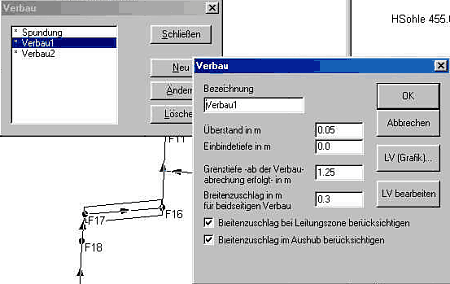

- Installation sheeting
At Menu in Einbau =>
Verbau
Here sheeting systems or sheet pile walls can be produced as
carriers for LV positions. The names are freely definable, it can as many as
desired blocked ones per measure be agreed upon. Are adjustable projection,
merge depth (with Spundungen) and border depth. If in the pre-setting for the
ditch width DIN/EN 1610 or DIN 18300) is selected, also still the width of the
sheeting plates comes also into the play. The slab width is to be added and be
registered as addition value to ditch width into the mask B riding addition in
m for reciprocal sheeting. ' ' the border depth describes the depth, starting
from which a sheeting is recompensed, usually 1,25m or 1,75m. For all ditch
sections, which are flatter, no sheeting is accounted for.
For regional
special cases the sheeting width can be considered beyond that with the conduit
zone and during the rebackfilling.
- Installation of finished units/structure
of pit
At Menu in Einbau =>
Fertigteile
As so is the case for the pipes with the pits: The pit
elements are freely definable in dimension, material and wall thickness. Each
element can be linked with any number of LV positions. Over a rule tablet one
specifies, which tubing dimension is to be connected with which pit lower part.
The produced shaft elements can be stored into a file and be read in with later
projects again. Likewise a shaft element list can be printed.
Since
version 3.7 deep pit positions (TS pits) can be linked with appropriate pit
lower parts. That means for the selection of lower parts of different dimension
(1000er, 1200er or 1500er) the normal tubingdependent selection filter seizes
and activates automatically the appropriate TS position for pits.
- Installation of shaped parts
Im Menü unter Einbau =>
Formstücke
Here the shaped parts are prepared in the future for
the water pipeline and for the tubing shifting list.
|
|
